VicRoads Concrete Single Flushout Riser (SD 1631)
The VicRoads Concrete Single Flushout Riser is a surface access point for cleaning and inspection of subsurface/pavement drains that complies with VicRoads / DTP Standard Drawing SD 1631. It enables jetting and debris removal while protecting the pavement structure.

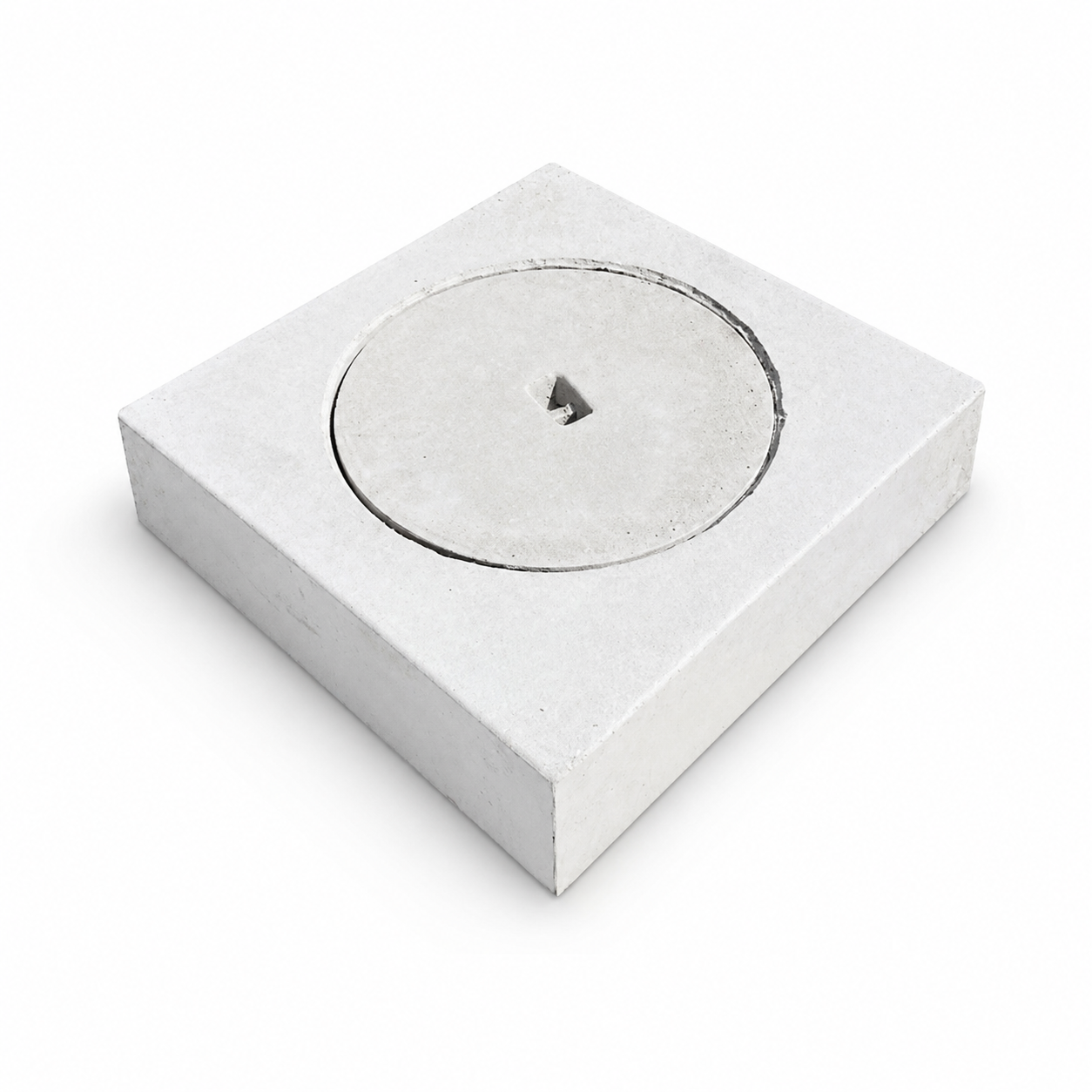

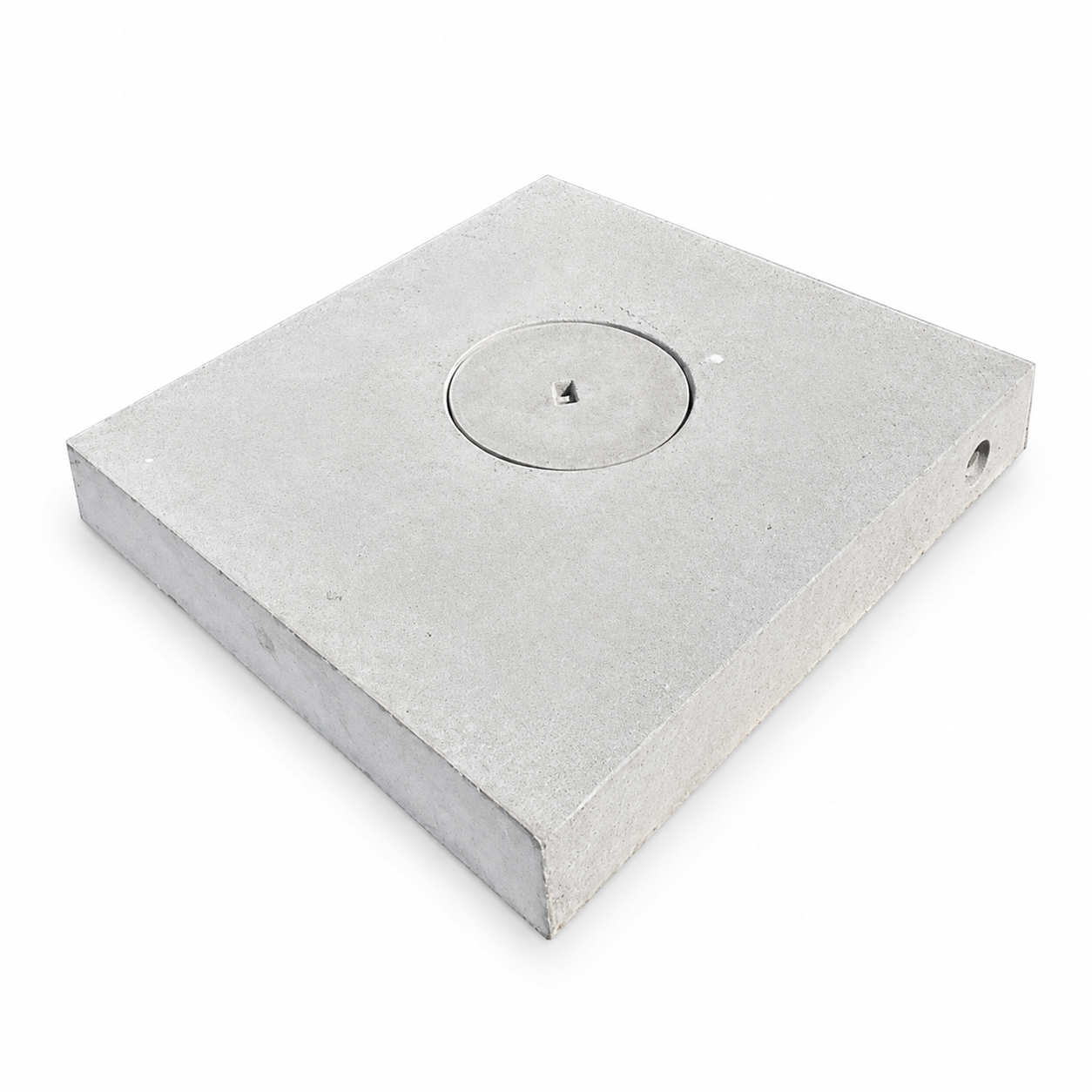

Two formats are available: a compact 450mm x 450mm unit and a larger 950mm x 850mm “with apron” unit for increased surface bearing and access. Units are manufactured from high-strength precast concrete for durability and low maintenance in road and civil environments.
Need two access points? See the Double Flushout Riser.
Key features & benefits
- SD 1631 compliant: Matches VicRoads/DTP detailing for single flushout risers and covers.
- Maintenance access: Provides a jetting/inspection point to clear blockages and maintain subsoil drains.
- Durable precast: Concrete body and lid for long service life and minimal upkeep.
- Two sizes: 450mm x 450mm, or 950mm x 850mm with apron for greater bearing and stability.
- System-ready: Coordinates with SD 1611 subsurface pits and SD 1641 alternative arrangements.
Applications
- Subsoil drainage beneath pavements and shoulders on road and civil projects.
- Roads & infrastructure requiring VicRoads/DTP standard maintenance access.
- Maintenance programs with routine jetting and inspection requirements.
VicRoads Concrete Single Flushout Riser specifications
Standard | VicRoads / DTP SD 1631 — Pavement Drain: Terminals (single flushout riser detail). |
Material | High-strength precast concrete. |
Interface | Maintenance access to subsurface/pavement drains per SD 1631 and the project design. |
Associated drawings | SD 1611 (Subsurface Drain — Pits), SD 1641 (Pavement Drain — Alternative Arrangements). |
Variants | Single Flushout Riser (this page) and Double Flushout Riser; 450mm x 450mm and 950mm x 850mm “with apron”. |
Note: Confirm project-specific detailing (levels, bedding, filter material, apron dimensions and placement) to the engineer’s design and SD 1631.
Installing the VicRoads Concrete Single Flushout Riser
- Locate and found the riser per SD 1631 (under shoulder/back of kerb as detailed, with concrete apron as specified).
- Coordinate levels with upstream pits (SD 1611) and outlet arrangements (SD 1641).
- Provide compaction, filter materials and apron construction as shown on SD 1631 and the project drawings.
Download SD 1631 (PDF) | Request a quote
Related: Double Flushout Riser
